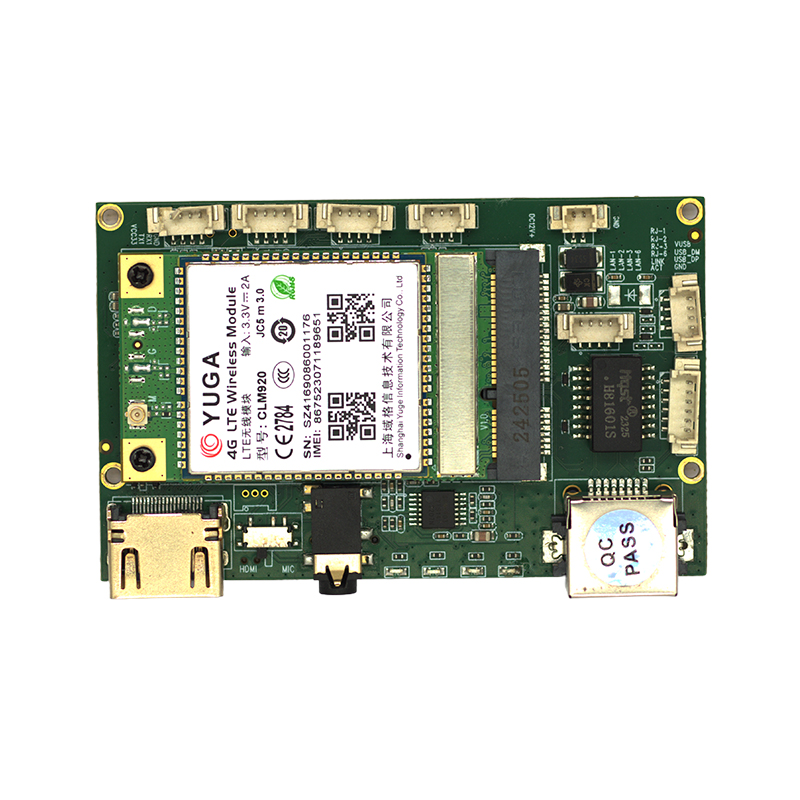

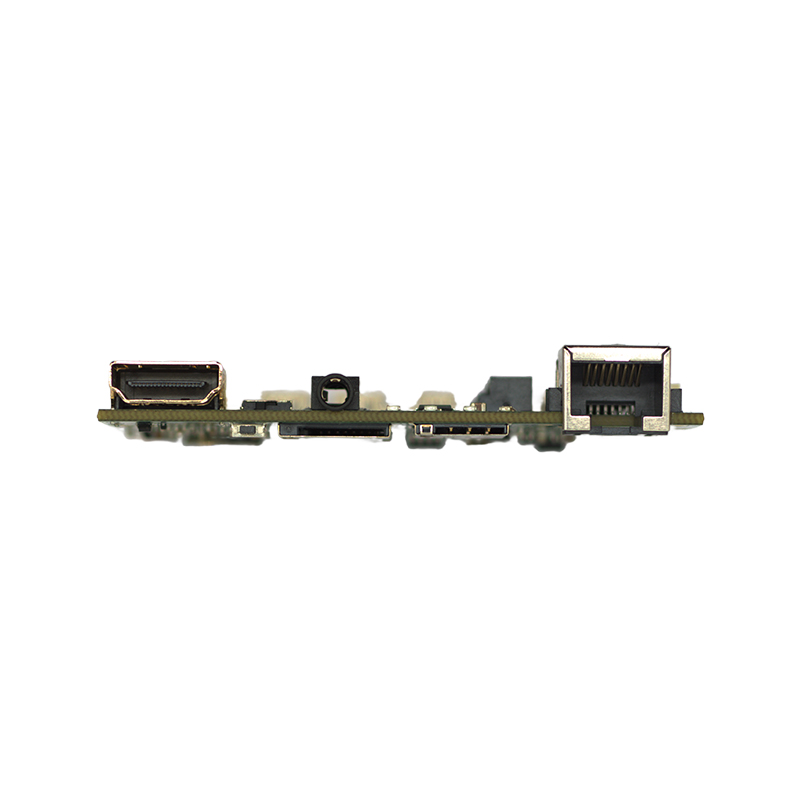

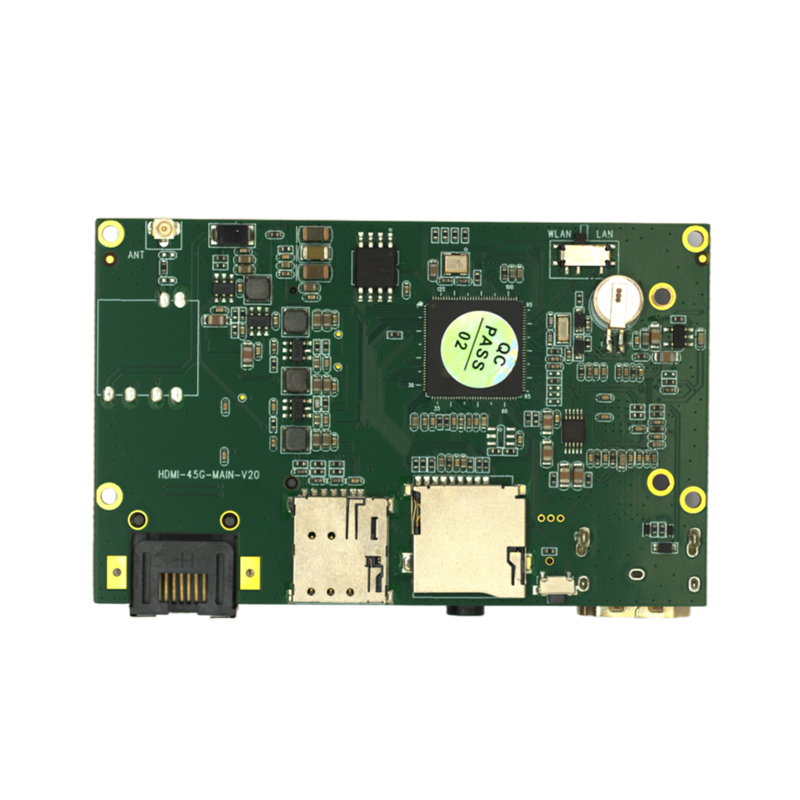

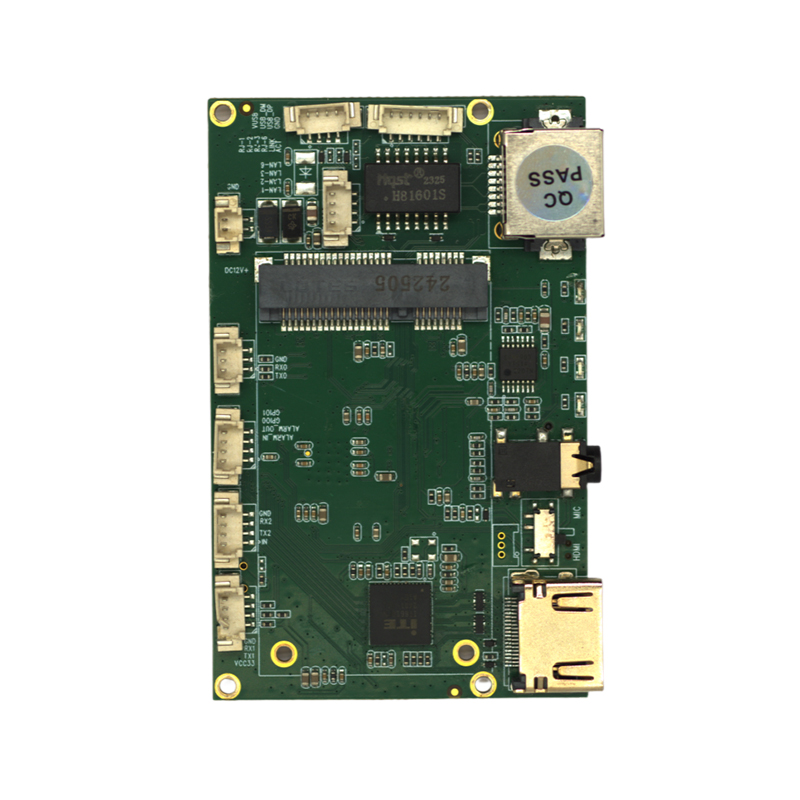

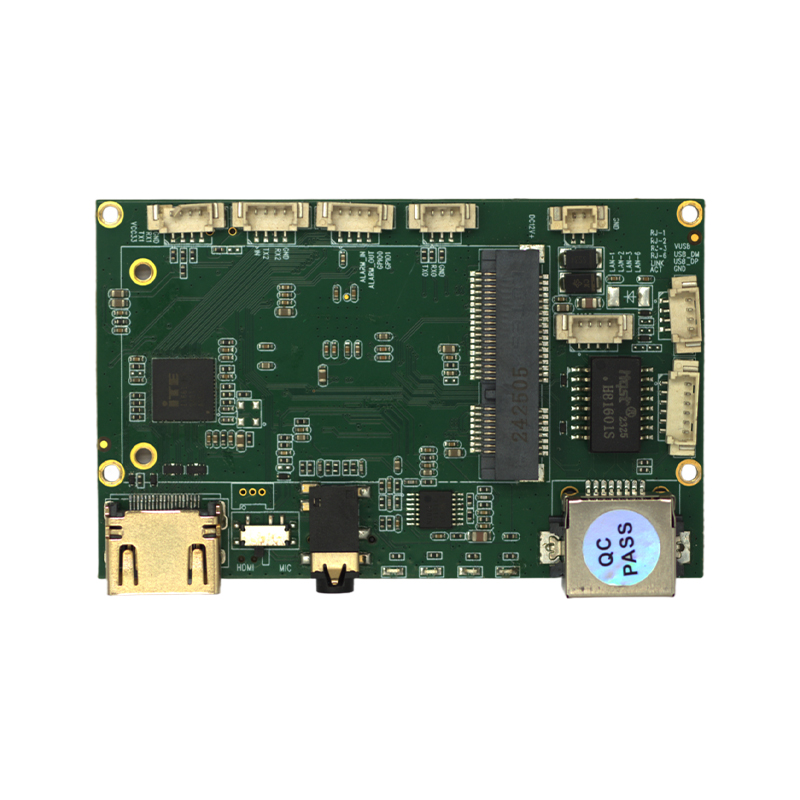

Model | YR-HDMI-E4G |
Master | SSC338Q 0.5T computing power |
Image conversion chip | HDMI high-definition video conversion chip |
Video Processing | Support H.264/H.265 encoding, bit rate 0.1M~8Mpbs adjustable, 1~60 frames/second adjustable |
Image Output | Main stream: 1920x1080@60, 1280*720@60, 1280*1024@30, etc. |
Sub-stream: D1, VGA, 640×360 | |
Audio Processing | G.711/ACC encoding, supports two-way voice intercom |
Image capture | Support continuous, timed and triggered snapshots |
Business Functions | Support OSD overlay, motion detection, human detection, customizable intelligent algorithm |
Reset button interface | Support 1 hardware reset interface |
USB port | 1 USB port, supports WIFI/4G/5G networks, and can customize UVC function |
Network Protocol | Support TCP/IP, IPV4, RTSP, HTTP, DHCP, NTP, RTMP, MQTT, WebRtc |
Remote Monitoring | Supports remote monitoring via mobile phone and PC, and supports SDK docking for open multi-platform P2P/WebRtc |
Network interface | 1 RJ45 network port, 10/100M adaptive, lightning protection and anti-static design |
Audio Interface | 1 x 4-prong headphone jack, supporting headphone sound output and microphone audio input |
Serial Port | 2 TTL serial ports, support Beidou/GPS positioning, support data transparent transmission, and IoT device docking |
TF card interface | 1 TF card interface, maximum support 256G |
Operating temperature | -20~80℃ |
Operating voltage | DC5.5V-24VDC optional POE power supply |
Size | 144*80*29mm, customizable special-shaped structures |
