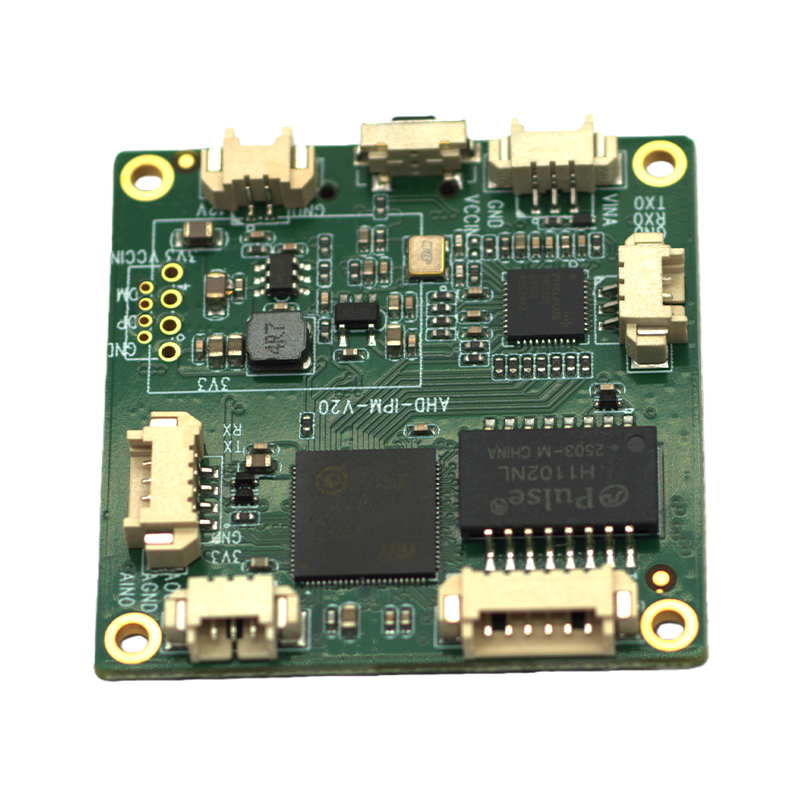

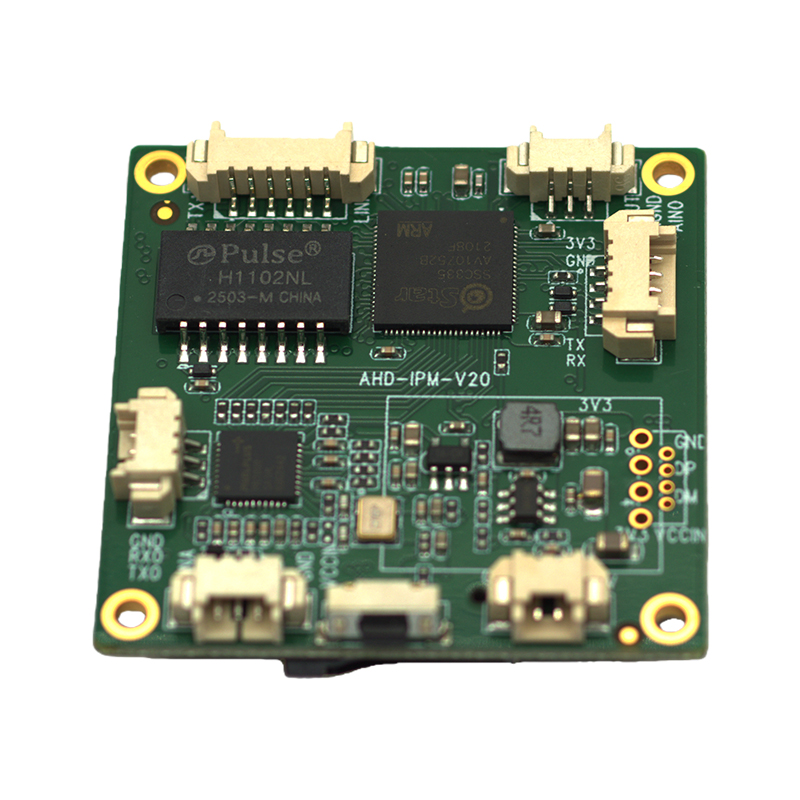

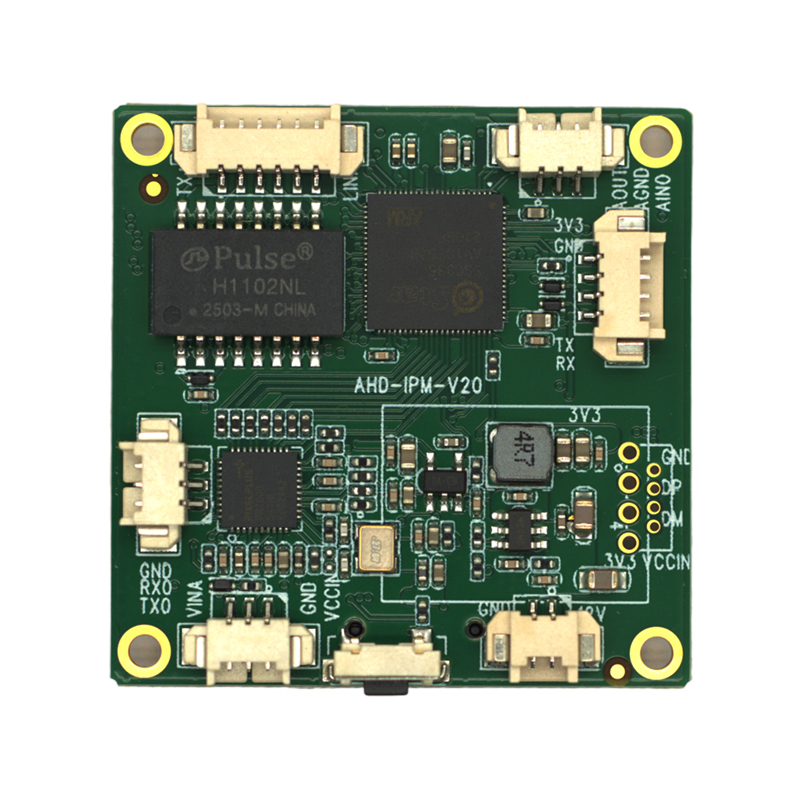

Model | YR-S35M-AHD |
Master | SSC335 |
Image conversion chip | PR2000K AHD/CVBS/TVI three-in-one video capture chip |
Video Processing | Support H.264/H.265 encoding, bit rate 0.1M~8Mpbs adjustable, 1~30 frames/second adjustable |
Image Output | Main stream: 1920x1080@30, 1280*720@30, 720*576@25 |
Sub-stream: D1, VGA, 640×360 | |
Audio Processing | G.711/ACC encoding, supports two-way voice intercom |
Image capture | Support continuous, timed and triggered snapshots |
Business Functions | Support OSD overlay, motion detection, human detection, and sound alarm |
Reset button interface | Support 1 hardware reset interface |
USB interface | 1 USB port, supports WIFI/4G expansion, customizable UVC function |
Network Protocol | Support TCP/IP, IPV4, RTSP, HTTP, DHCP, NTP, RTMP, MQTT, WebRtc |
Remote Monitoring | Supports remote monitoring via mobile phone and PC, and supports SDK docking for open multi-platform P2P/WebRtc |
Network interface | 1 RJ45 network interface, 10/100M adaptive, lightning protection and anti-static design |
Audio Interface | Support 1 MIC input, 1 LINE_OUT |
Serial Port | 1 TTL serial port, supporting data transparent transmission and IoT device docking |
TF card interface | 1 TF card interface, maximum support 256G |
Operating temperature | -20~70℃ |
Operating voltage | DC6V-12V, POE power supply |
Size | Single board 38.8*38.8mm, customizable special-shaped structure |
